Horizontal Laminar Air Flow Manufacturers
Auralis Zone Pvt. Ltd. stands among reliable Horizontal Laminar Air Flow Manufacturers in Gujarat, offering advanced contamination control solutions. These systems provide uniform horizontal airflow across the workspace, creating a sterile environment for handling sensitive materials. Designed with high-efficiency HEPA filtration, our units ensure optimal air purity levels. They are ideal for laboratories, electronics manufacturing, and pharmaceutical industries.
When selecting the Best Horizontal Laminar Air Flow in Gujarat, industries prefer Auralis Zone Pvt. Ltd. for quality construction and dependable performance. Our airflow systems minimize contamination by delivering consistent, unidirectional airflow. With ergonomic design and energy-efficient operation, they support safe and productive working conditions. Built for durability and compliance, our units meet stringent regulatory requirements.
As established Horizontal Laminar Air Flow Exporters and Suppliers in India, we supply advanced airflow systems nationwide with timely logistics support. Our products undergo strict quality testing before dispatch to ensure flawless operation. We provide installation guidance, validation support, and maintenance assistance. Our commitment to excellence ensures long-term performance and reliability.
Download PDFIntroduction

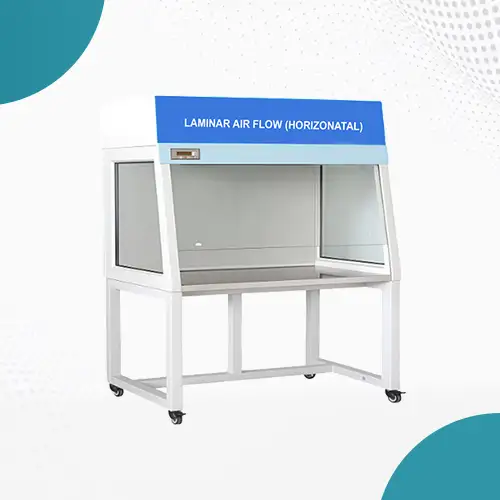

The Horizontal Laminar Air Flow Unit is designed to provide an ISO Class 5 clean air environment using HEPA filtered horizontal airflow. Clean air flows from rear to front ensuring maximum product protection for pharmaceutical and laboratory applications.
Application
- Pharmaceutical laboratories
- Sterile sampling & compounding
- Microbiology & biotechnology labs
- Electronics & precision assembly
- Quality control laboratories
Key Features
- ISO Class 5 (Class 100) clean air environment
- Energy-efficient DC ECM blower
- Continuous Pressure Monitoring upstream for filter testing
- Highly Tested for HVAC Parameter.
- Horizontal unidirectional airflow (Rear to Front)
- HEPA filter efficiency ≥99.97% at 0.3 microns
- Uniform airflow velocity 0.45 ±20% m/s
- Low noise and vibration design
- Energy efficient blower system
- Smooth and easy-to-clean internal surface
- Ergonomic and operator friendly design
- EU7-Inermediate filter, EU14-Hepa filter
- Optional: UV Reader, LAF Speed Control, Operated by controller, blower trip alarm, Inter locking for door
Parameter Specification
| Specification | Details |
|---|---|
| Construction | Powder-coated MS / SS body |
| Noise Level | ≤ 65 dB |
| Illumination | ≥ 800 Lux |
| Power Supply | 230 V ±10%, 50 Hz |
| Blower | Dynamically balanced centrifugal blower |
Construction
- Main Body: Powder coated MS / SS 304/ SS 316 optional
- Work Surface: SS 304/ SS 316 with matte finish
- Side Panels: Clear acrylic glass
- Corrosion resistant epoxy coating
- Electrical Specifications
- Power Supply: 230V ±10%, 50 Hz, Single Phase
- LED Light
- Continuous duty dynamically balanced blower motor
| Model | Working Area (W x D x H) | HEPA Filter Area | Blower Capacity (CFM) |
|---|---|---|---|
| HLAF-24 | 2 x 2 x 3 | 610 x 1030 x 69 | 250 CFM |
| HLAF-36 | 2 x 2 x 3 | 610 x 1030 x 69 | 400 CFM |
| HLAF-48 | 2 x 2 x 3 | 610 x 1030 x 69 | 600 CFM |
| HLAF-60 | 2 x 2 x 3 | 610 x 1030 x 69 | 1000 CFM |
Standards Compliance
- Designed as per ISO 14644-1
- Suitable for GMP / GLP laboratories
- Cabinet Performance: IEST-RP-CC002.2, Worldwide
- Air Quality: ISO 14644.1, Class 3, Worldwide AS 1386 Class 1.5, Australia JIS B9920, Class 3, Japan
- Filtration: EN-1822 (H14), Europe IEST-RP-CC001.3, Worldwide IEST-RP-CC007, Worldwide IEST-RPCC034.1, Worldwide
- Electrical Safety: IEC61010-1, Worldwide EN 61010-1, Europe UL61010-1, USA CAN/CSA-22.2, No.61010-1
